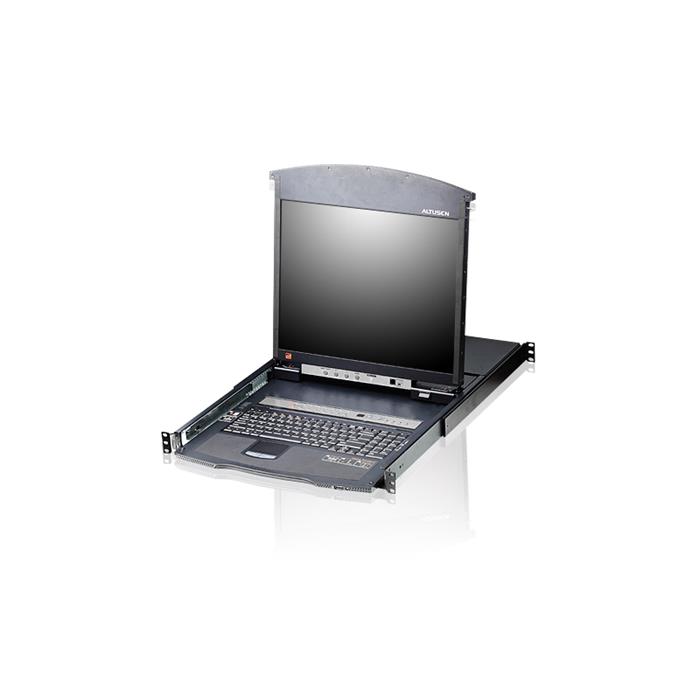

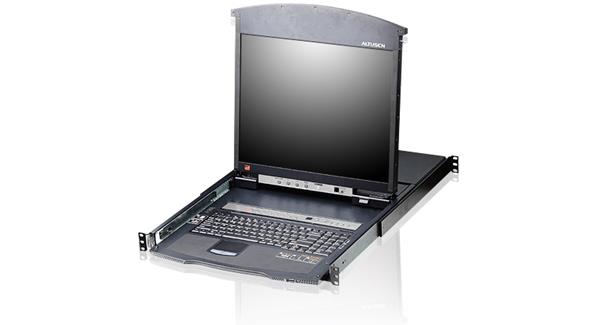

Aten-Kl1508Amt 8-Port Cat 5 High-Density Dual Rail Lcd Kvm Switch

Stok Kodu: 2563-187-26094

1.515,92 USD +kdv
1.819,10 USD
49.973,82 TL +kdv
59.968,58 TL
havale ile
59.968,58 TL
23 temmuz salı günü kargoda
Kargo Bedava

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack
  • Dual Rail operation - LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock enables the sliding console to remain securely locked away when not in use
  • A single console controls up to 8 computers - daisy chain up to 31 additional units to control up to 256 computers
  • KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation.
  • RJ-45 connectors and Cat 5e/6 cable - extends the distance between computers and switch - up to 40m (130) for resolutions of 1280 x 1024 @75Hz
  • A dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
  • No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
  • OSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easy
  • Quickly and conveniently switch to any computer with station and port selection switches - LED displays indicate the station and port location
  • Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
  • Auto Scan feature for monitoring user-selected computers
  • Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for each
  • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
  • Standard 105-key keyboard; Mac and Sun keyboard emulation
  • Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
  • Rack mountable in 19" System Rack (1U) - standard rack mount kit included - optional Easy Rack Mount (single person installation) kit available (requires separate purchase)
  • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
  • Super A-Grade TFT LCD Panel;
  • Multiplatform support: Windows 2000/XP/, Mac, Linux, Unix, Sun, FreeBSD


Compatible KVM Adapter Cables:
 USB VGA KVM Adapter (5M Cable)
 USB VGA KVM Adapter
 USB VGA KVM Adapter with Composite Video Support
 USB DisplayPort Virtual Media KVM Adapter with Smart Card Support
 USB HDMI Virtual Media KVM Adapter with Smart Card Support
 USB DVI Virtual Media KVM Adapter with Smart Card Support


Package Contents

  • 1x 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
  • 1x Firmware Upgrade Cable
  • 1x Power Cord (6ft.)
  • 1x User Manual
  • 1x Quick Start Guide


Console Connectors
Secondary Console 1 x USB Type A Female, 1 x 6-pin Mini-DIN Female
Power On 1 (Blue)
On Line 8 (Green)
Station ID 2 x 7 Segment (Red)
Selected 8 (Red)
Port Selection Hotkeys ; OSD; Push Button
Power Consumption 120V/24W; 230V/24W
Scan Interval 1 - 255 secs
Keyboard PS/2, USB, Serial
Mouse PS/2, USB, Serial
Computer Connections
Direct 8
Daisy Chain or Cascading 256 (Daisy Chain)
Daisy Chain 1 x DB-25 Male
CPU Connectors
Keyboard, Mouse, and Monitor 8 x RJ-45
Flash ROM Upgrade 1 x RJ11
Video Resolution 1280x 1024@ 75Hz; DDC2B
Operation Temperature 32~104F (0~40 C)
Storage Temperature -4~140F (-20~60 C)
Humidity 0~80% RH, Non-condensing
Physical Properties
Unit Weight 33.48 lbs.
Unit Dimension 18.89 x 27.60 x 1.73 in.
Unit Weight with package 46.2 lbs.
Case Dimension 32.5x 5.1x 26.5 in.
Case Weight 51.2 lbs.
Case Qty 1
