ATEN

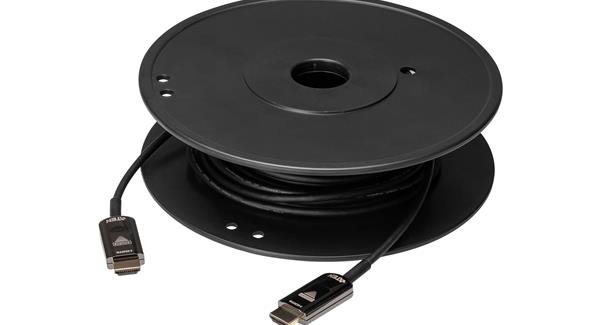

Aten-Ve781010 10M True 4K Hdmı Active Optical Cable (True 4K@10M)

Stok Kodu: 2647-187-35955

105,73 USD +kdv
126,88 USD
3.421,95 TL +kdv
4.106,34 TL
havale ile
4.106,34 TL
Bugün kargoda
Kargo Bedava

  • Supports resolution up to (4096 x 2160 @ 60Hz 4:4:4)
  • HDMI (3D, Deep Color,,, ARC); 2.2 compliant
  • Extends signals up to 10m
  • Reduced EMI and RFI for lower noise interference
  • High data transfer rate of 18 Gbps
  • Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
  • Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
  • Plug-and-play



Cable Length 10M / 32.8ft
Cable Type Hybrid type with optical fiber (OM3) and copper wire
Video Input
Interfaces 1 x HDMI 19-pin Type-A Male
Video Output
Interfaces 1 x HDMI 19-pin Type-A Male
Video
Max. Data Rate 18 Gbps (6 Gbps per Channel)
Max. Pixel Clock 600 MHz (Max.)
Max. Resolutions / Distance Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M
*Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
*Color Depth: 30 / 36 / 48 bit
Compliance HDMI (3D, Deep Color, 4K, HDR, ARC)
HDCP 2.2
Communication
Signals TMDS / HDCP 2.2 / EDID / CEC
Audio
Input PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Conductor
Construction 7 x Tinned Copper wire strand
4 x OM3 Optical Fiber (50/125um)
Notification Bend Radius: 20mm (Min.)
Compression Load Resistance: Max. 50kg (500N)
Cable Filler: Kevlar
Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE
* NO external power required
Certifications
Certifications Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1
EMC Class-A / Class-B
Power Consumption DC5.0V:0.25W:0.05ABTU
Jacketed
Material PVC (85P)
Color: Black
Environmental
Operating Temperature 0°C to 50°C (32? to 122?)
Storage Temperature -20°C to 70°C (-4? to 158?)
Humidity 0 - 85% RH, Non-Condensing
Physical Properties
Housing Connector Case: Zinc Alloy
Weight 0.35 kg ( 0.77 lb )
Cable Outer Dimension 4.5mm (± 0.2mm)





Package Contents

  • 1x VE781010 10M True 4K HDMI Active Optical Cable
  • 1x Installation Notice
