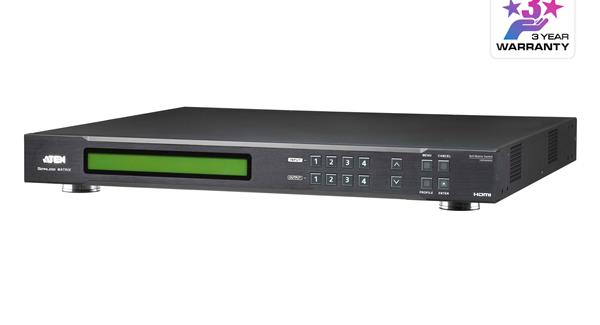

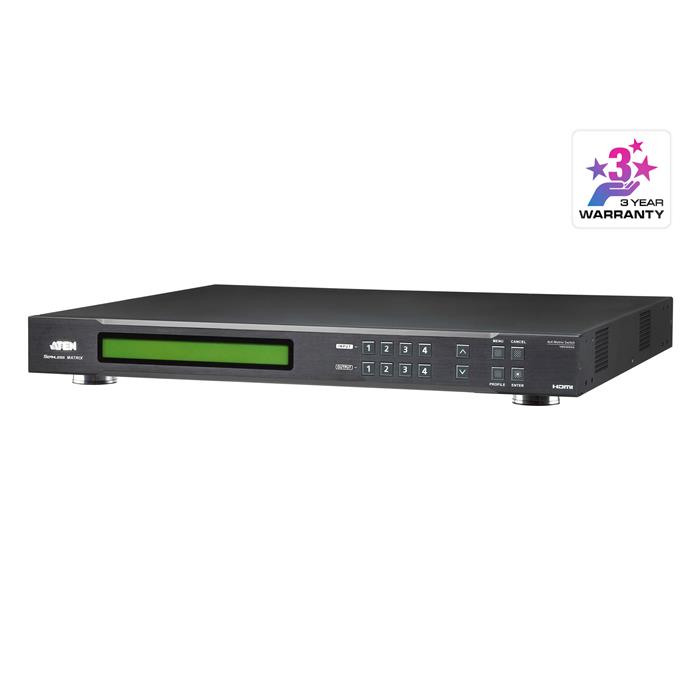

Aten-Vm5404Ha 4 X 4 Hdmı Matrix Switch With Scaler
ATEN

Aten-Vm5404Ha 4 X 4 Hdmı Matrix Switch With Scaler

Favorilere Ekle Fiyatı Düşünce Haber Ver Yazdır Daha ucuzunu buldum

Stok Kodu: 2431-187-24331

2.353,12 USD +kdv
2.823,74 USD
99.395,79 TL +kdv
119.274,95 TL
Yarın kargoda

  • Routes any of 4 HDMI sources to any of 4 HDMI displays
  • Local HDMI output – enables previewing of up to 4 video sources in a window
  • Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Control app, and
  • Device status can be viewed and controlled via ATEN Control App
  • Video Wall functionality via intuitive web GUI* allows for customization of up to 8 layouts for any type of video walls
  • Built-in scaler automatically converts input resolutions for optimal appearance on the display
  • FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
  • ATEN technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission
  • EDID Expert – selects optimum settings for smooth power-up, high-quality display, and use of the best resolution across different screens
  • Audio enabled; HDMI audio can be extracted to stereo audio
  • HDMI (3D, Deep color); 1.4
  • Supports Dolby True HD and DTS HD Master audio
  • Supports Consumer Electronics Control (CEC)
  • ESD protection for HDMI
  • Firmware upgradeable
  • Rack mountable (1U design)

    *Note:
    1. Ifing is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disablinging is a must.
    2. Videos may not display within range when or Video Wall is enabled, in which case please adjust the display settings on your device.



Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 5.0 m
Video Output
Interfaces 4 x HDMI Type A Female (Black)
(Array Mode): 1 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 15 m
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1080p
Max. Distance Up to 15 m
Audio
Output 1 x Mini Stereo Jack Female (Green)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A
Power Consumption AC110V:35.7W:167BTU
AC220V:34.9W:164BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 5.12 kg ( 11.28 lb )
Dimensions (L x W x H) 43.24 x 37.82 x 4.40 cm
(17.02 x 14.89 x 1.73 in.)



Package Contents

  • 1x HDMI Matrix Switch with Scaler
  • 1x power cord
  • 1x mounting kit
  • 1x user instructions
