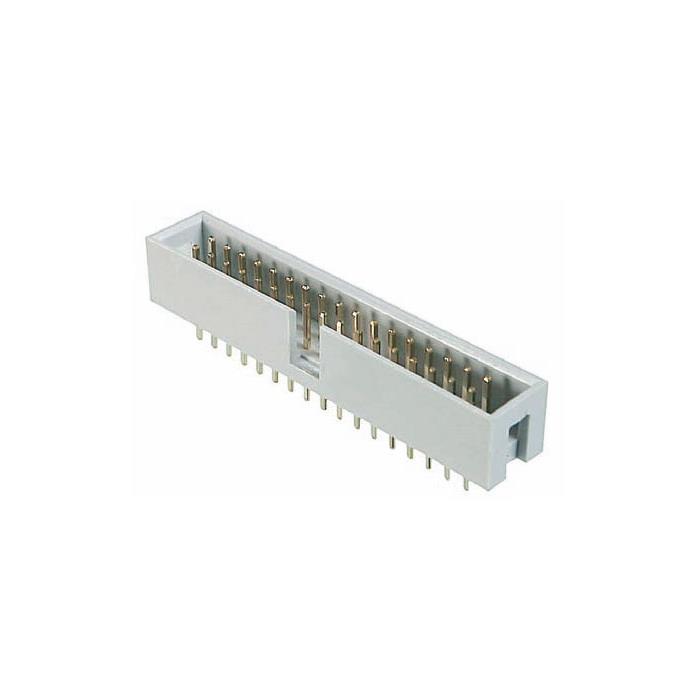

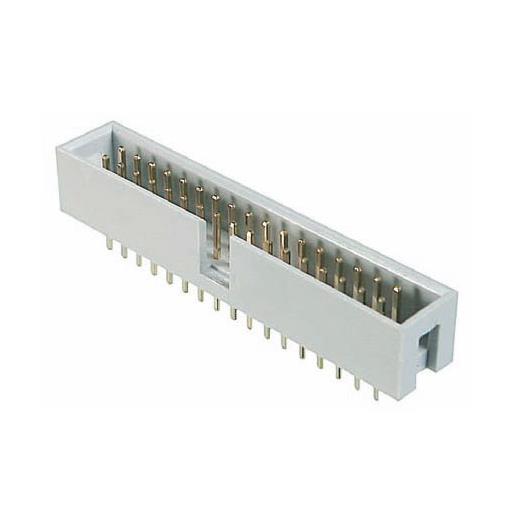

Awhw 20G-0202 Pcb Konnektör 20 Pin Erkek Kilitsiz Düz, Header, 20 Contacts, Straight, Pitch 2.54Mm X 2.54Mm

Header, 10- to 64-contacts, straight, pitch 2.54mm x 2.54mm
Insulator material: PBT, UL94V-0
Contact material: Brass
Plating: Ni, Au / Sn
Contact resistance: 20m? max
Insulation resistance: 1000m? min
Current rating: 3A
Operating temperature: -40°C to +105°C
Operating voltage: 250V AC
Test voltage: 1000V AC
