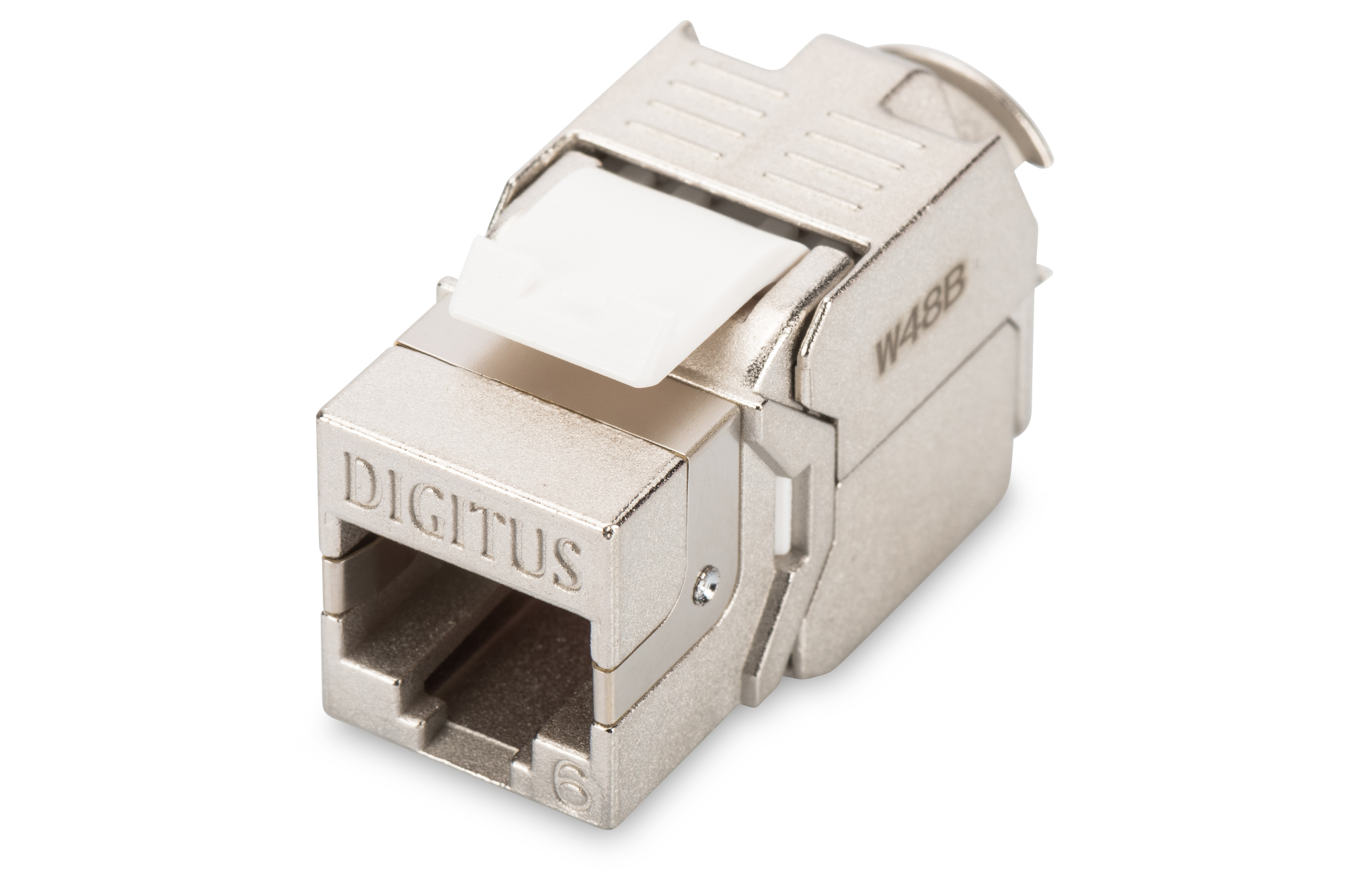

DN-93612-1 Digitus CAT 6 Keystone Jack, Shielded/Zırhlı, 250 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, aletsiz sonlandırma özelliği

DN-93612-1 Digitus CAT 6 Keystone Jack, Shielded/Zırhlı, 250 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, aletsiz sonlandırma özelliği

Digitus

Bu ürünü en uygun fiyata satın almak için teklif isteyebilirsiniz !



  • Ürün Açıklaması

  • Material enclosure: Zinc diecast - Nickel plated
  • Material contacts: Phosphor bronze
  • 360° cable screen connection for enhanced EMI protection
  • Contacts coating: Nickel, gold plated 0.5 µ
  • Operating Temperature: -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Material PCB: FR4, UL 94V-0, multilayer 1.45 mm thickness
  • Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5)
  • Diameter Cu-Conductor: AWG (26/1 ... 22), stranded and solid
  • RJ45 jack, female, for patch panel installation
  • Compact form allows an installation of 24 x in 483mm (19") 1U blank Panel
  • Suitable for bracket type DN-91410, DN-91411, DN-91412
  • Opening size acc. Keystone Standard 19.35 mm x 14.8 mm
  • Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B
  • Suitable for design wall plates for several well-known switching programs e.g. Busch-Jaeger part number: 1812 or 1866EB
  • Suitable for design wall plates for switching program PEHA part number: D 600 MJ8
  • Suitable for design wall plates for switching program FELLER (CH) EDIZIOdue part number e.g.: 1183-028.FMI.F.61
  • Fits easily in wall- and floor boxes, patch panels, desk boxes through short depth
  • POE+ according to IEEE 802.3at
  • Meets requirements acc. following standards: IEC 60603-7-51, ANSI/TIA/EIA 568-C.2, IEC 60512-27-100, ISO/IEC 11801 am. 2.
  • Dimensions (HxWxD): 20,14,34 mm
  • Weight: 22 g
